Category 6 unshielded (UTP) four pair twisted pair cables

Specifications

△ wire gauge	223AWG
△ Copper core diameter	0.55±0.05mm
△ Wire diameter	6.3mm±0.2mm
△ insulating materials	high density polyethylene（HDPE）
△ isolation	Solid or foamed high-density polyethylene
△ sheath	Flame retardant PVC or halogen-free flame retardant LSZH
△ Support bandwidth	250MHz
△ Exceeding the Cat 6 standard of ANSI/TIA/EIA 568 C.2

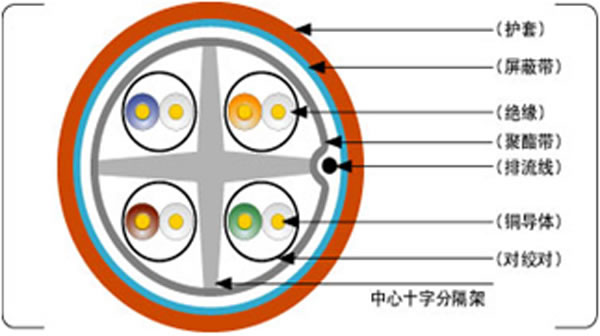

△ Central skeleton, separating twisted pair wires to improve crosstalk performance
△ Support Gigabit Ethernet network transmission requirements
△ ANSI/TIA/EIA 568 C.2 standard
△ ROHS compliant
