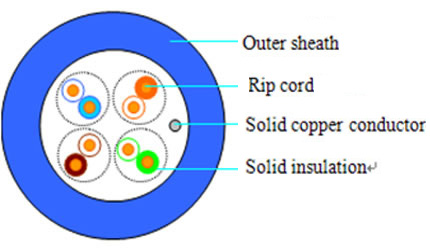

Category 5e unshielded (UTP) four pair twisted pair cable

Specifications

△ conductor	24AWG Solid copper conductor
△ Copper core diameter	0.5mm
△ Wire diameter	5.0±0.4mm
△ insulating materials	high density polyethylene（HDPE）
△ isolation	Solid or foamed high-density polyethylene
△ sheath	Flame retardant PVC or halogen-free flame retardant LSZH
△ Support bandwidth	100MHz
△ Exceeding the Cat 5e standard of ANSI/TIA/EIA 568 C.2
△ Central skeleton, separating twisted pair wires to improve crosstalk performance
△ Support 100Mbps Ethernet network transmission requirements
△ ANSI/TIA/EIA 568 C.2/ISO/IEC11801
△ ROHS compliant
