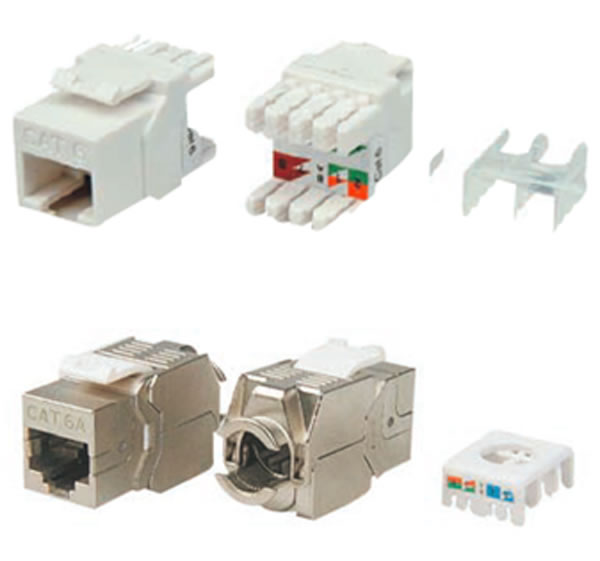

This shielding module can be used to transmit digital and analog voice, video, and data signals. Class 6A modules comply with the device standards of ISO/IEC 11801 and ANSI/TIA-568-C.2. When used with Category 6A and Category 7 data cables, this shielding module has a high margin of electrical transmission performance for permanent link testing. This module can also be used for 10G Ethernet transmission.

● Improved module termination technology optimizes transmission performance by maintaining the twisted pair distance and reducing the twisted pair distance

● Zinc alloy die-casting shell with installation buckle, can be installed on keystone style wiring boards and panels

● Phosphorus bronze contact points, plated with thick gold to ensure good contact and repeated insertion and removal

● To connect the core wire, the core wire manager is used in conjunction with two integral movable wing shaped shells for IDC termination without the need for tools. Only the cutting tool is needed to cut off excess wire ends

● 360 degree all-round metal shielding can be used in fully shielded environments

● The cable at the tail end can be stress relieved through zip ties

● Modules can be reused
